Neodymium Block Magnets with Zinc plating from China manufacturer

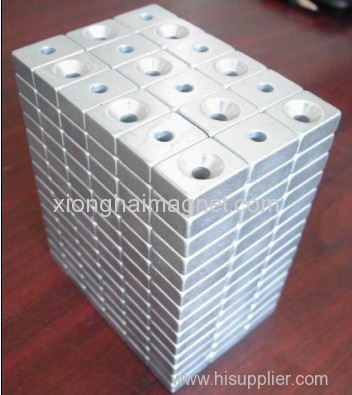

Neodymium Block Magnets with Zinc plating

Price:	0.01~20.0 USD
Payment Terms:	T/T,L/C;paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Block 15X10X4

Production Capacity: 100 tons per month

Delivery Date: 15days

Shape: Block with a hole

Composite: Neodymium Magnet

Grade: N33 N35 N38 N40 N42 N45 N48...

Means of Transport: Ocean,Air;others

Packing: Neutral packing

Application: Industrial Magnet

Type: Permanent

Brand Name: xionghai magnets

Plating: Zinc

Neodymium block magnets are mainly used in Motor equipment and liner motor.
The material grade from N35 to 33AH.
Block Magnet is one regular shape.

Xionghai Neodymium block magnets preparesits anisotropic powders by either casting an alloy melt into a mold, or strip casing. Strip Casting offers the advantage of better chemical stability. Subsequently, the ingot from the mold or the flakes from Strip Casting are pulverized to a uniform grain/particle size. The best method for obtaining the desired grain size is by HDDR. The HDDR [hydrogenation-decomposition-desorption-recombination] process yields a more homogenous particle size with a minimum of α-Fe, and Nd-rich phases. Anisotropic Nd-Fe-B, HDDR powders prepared from strip cast alloys are used for the HAST [Highly Accelerated Stress Test] grades of NdFeB Magnets, including N, H, SH, UH, EH, and AH grades.

Block Magnetis one regular shape of Rare earth magnets and perment magnets.
It is always manufactured via Cutting and grinding etc .Block magnets or Rectangle magnets have the following important factors such as, Length,Width, Thickness, Round Edge etc.

Our neodymium block magnets are mainly used in MRI equipment and liner motor.

With our advanced equipment like hydrogen decrepition frunance and continuous sintering furnace, we can mass produce high grade like N52, 48H, 45SH, 40UH,33AH etc.

Also with our experience in material preparation and machining, we can produce very big block, such as 4" or 2" length.
We are also expert for packaging and transporting the high energy big block neo magnets.

Our plating options include: nickel+copper+nickel, black epoxy and environmental Zinc coating.

The Magnetic Properties of Neodymium Permanent Magnete Super Strong Magneti Neodimio Rare Earth Aimant Neodyme:

Magnetic Properties of Sintered NdFeBMagnets

Grade	Remanence		Coercivity Force		Intrinsic Coercive Force		Max. Energy Product		maximum Operating Temp.
	Br		Hcb		Hcj		( BH ) max
	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe
N35	1170-1220	11.7-12.2	≥868	≥10.9	≥955	≥12	263-287	33-36	80 ℃
N38	1220-1250	12.2-12.5	≥899	≥11.3	≥955	≥12	287-310	36-39	80 ℃
N40	1250-1280	12.5-12.8	≥907	≥11.4	≥955	≥12	302-326	38-41	80 ℃
N42	1280-1320	12.8-13.2	≥915	≥11.5	≥955	≥12	318-342	40-43	80 ℃
N45	1320-1380	13.2-13.8	≥923	≥11.6	≥955	≥12	342-366	43-46	80 ℃
N48	1380-1420	13.8-14.2	≥923	≥11.6	≥876	≥12	366-390	46-49	80 ℃
N50	1400-1450	14.0-14.5	≥796	≥10.0	≥876	≥11	382-406	48-51	60 ℃
N52	1430-1480	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53	60 ℃
33M	1130-1170	11.3-11.7	≥836	≥10.5	≥1114	≥14	247-263	31-33	100 ℃
35M	1170-1220	11.7-12.2	≥868	≥10.9	≥1114	≥14	263-287	33-36	100 ℃
38M	1220-1250	12.2-12.5	≥899	≥11.3	≥1114	≥14	287-310	36-39	100 ℃
40M	1250-1280	12.5-12.8	≥923	≥11.6	≥1114	≥14	302-326	38-41	100 ℃
42M	1280-1320	12.8-13.2	≥955	≥12.0	≥1114	≥14	318-342	40-43	100 ℃
45M	1320-1380	13.2-13.8	≥995	≥12.5	≥1114	≥14	342-366	43-46	100 ℃
48M	1360-1430	13.6-14.3	≥1027	≥12.9	≥1114	≥14	366-390	46-49	100 ℃
50M	1400-1450	14.0-14.5	≥1033	≥13.0	≥1114	≥14	382-406	48-51	100 ℃
33H	1130-1170	11.3-11.7	≥836	≥10.5	≥1353	≥17	247-271	31-34	120 ℃
35H	1170-1220	11.7-12.2	≥868	≥10.9	≥1353	≥17	263-287	33-36	120 ℃
38H	1220-1250	12.2-12.5	≥899	≥11.3	≥1353	≥17	287-310	36-39	120 ℃
40H	1250-1280	12.5-12.8	≥923	≥11.6	≥1353	≥17	302-326	38-41	120 ℃
42H	1280-1320	12.8-13.2	≥955	≥12.0	≥1353	≥17	318-342	40-43	120 ℃
45H	1300-1360	13-13.6	≥963	≥12.1	≥1353	≥17	326-358	43-46	120 ℃
48H	1370-1430	13.7-14.3	≥995	≥12.5	≥1353	≥17	366-390	46-49	120 ℃
33SH	1130-1170	11.3-11.7	≥844	≥10.6	≥1592	≥20	247-271	31-34	150 ℃
35SH	1170-1220	11.7-12.2	≥876	≥11.0	≥1592	≥20	263-287	33-36	150 ℃
38SH	1220-1250	12.2-12.5	≥907	≥11.4	≥1592	≥20	287-310	36-39	150 ℃
40SH	1240-1280	12.5-12.8	≥939	≥11.8	≥1592	≥20	302-326	38-41	150 ℃
42SH	1280-1320	12.8-13.2	≥987	≥12.4	≥1592	≥20	318-342	40-43	150 ℃
45SH	1320-1380	13.2-13.8	≥1003	≥12.6	≥1592	≥20	342-366	43-46	150 ℃
28UH	1020-1080	10.2-10.8	≥764	≥9.6	≥1990	≥25	207-231	26-29	180 ℃
30UH	1080-1130	10.8-11.3	≥812	≥10.2	≥1990	≥25	223-247	28-31	180 ℃
33UH	1130-1170	11.3-11.7	≥852	≥10.7	≥1990	≥25	247-271	31-34	180 ℃
35UH	1180-1220	11.8-12.2	≥860	≥10.8	≥1990	≥25	263-287	33-36	180 ℃
38UH	1220-1250	12.2-12.5	≥876	≥11.0	≥1990	≥25	287-310	36-39	180 ℃
40UH	1240-1280	12.5-12.8	≥899	≥11.3	≥1990	≥25	302-326	38-41	180 ℃
42UH	1280-1320	12.8-13.2	≥899	≥11.3	≥1990	≥25	318-342	40-43	180 ℃
28EH	1040-1090	10.4-10.9	≥780	≥9.8	≥2388	≥30	207-231	26-29	200 ℃
30EH	1080-1130	10.8-11.3	≥812	≥10.2	≥2388	≥30	223-247	28-31	200 ℃
33EH	1130-1170	11.3-11.7	≥836	≥10.5	≥2388	≥30	247-271	31-34	200 ℃
35EH	1170-1220	11.7-12.2	≥876	≥11.0	≥2388	≥30	263-287	33-36	200 ℃
38EH	1220-1250	12.2-12.5	≥899	≥11.3	≥2388	≥30	287-310	36-39	200 ℃
40EH	1250-1280	12.5-12.8	≥899	≥11.3	≥2388	≥30	287-310	38-41	200 ℃
28AH	1040-1080	10.4-10.8	≥787	≥9.9	≥2624	≥33	207-231	26-29	230 ℃
30AH	1080-1130	10.8-11.3	≥819	≥10.3	≥2624	≥33	223-247	28-31	230 ℃
33AH	1130-1170	11.3-11.7	≥843	≥10.6	≥2624	≥33	247-271	31-34	230 ℃
35AH	1170-1220	11.7-12.2	≥876	≥11.0	≥2624	≥33	263-287	33-36	230 ℃
