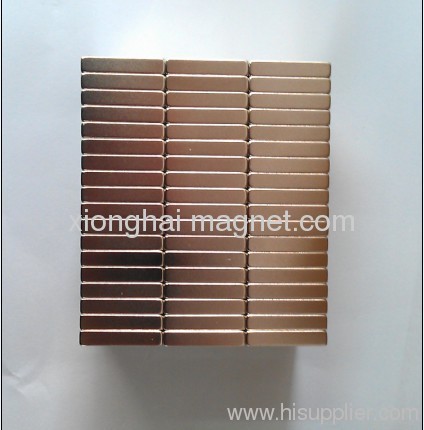

Neodymium block Magnets Rare earth N45 from China manufacturer

Price:	0.01~20.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Block Magent Size: 1"X0.5"X...

Production Capacity: 100 tons per month

Delivery Date: 15days

Shape: Block

Composite: Neodymium Magnet

Coatings: Nickel

Means of Transport: Ocean,Land,Air

Packing: Neutral packing

Application: Industrial Magnet

Type: Permanent

Brand Name: Xionghai

Grade: N45

Sintered Block NdFeB Magnet.widely used in wind generators, meters, sensors, Widely used in aerospace, automotive, electronics, electro-acoustic...

XiongHai Strength magnet are dark gray alloy. They are composed of Neodymium, Iron and Boron. Density of Neodymium magnets is .27Lb/in3 (7.5g/cm3).
Neodymium magnets are manufactured in a metallurgy process through alloying, crushing, powdering, pressing w/magnetic orientation, sintering, then cutting, coating, inspecting and packing before shipment.

1.Product name:NdFeB Magnets
2. widely used in wind generators, meters, sensors, Widely used in aerospace, automotive, electronics, electro-acoustic, communications, instrumentation, medical equipment and other a permanent magnetic field devices and equipment.
3. Shape: Block and Cylinder magnet rings, magnet arc,segment
4. Delivered magnetized or un-magnetized
5 .Magnetization direction: according to customer's requirements
6. Coating required:Zinc-coating,Nickel-Coating,Aurum-coating,Silver-coating,Epoxy-coating,Phosphatsing,Parylene
Shapes and Sizes:

We can provide the sizes of NdFeB magnet as follows:

Block	Length	Width	Thickness
Maximum	220mm	80mm	50mm
Minimum	1mm	1mm	0.5mm
Ring	Ourer Dia	Inner Dia	Thickness
Maximum	220mm	80mm	50mm
Minimum	1mm	0.6mm	0.5mm

Cylinder/Disc	Outer Dia	thikness
Maximum	220mm	30mm
Minimum	0.30mm	50mm

Magnetic Characteristics And Physical Properties of Sintered NdFeB
Properties	Remanence	Coercive Force	Intrinsic Coercive Force	Max Energy Product	Max Working Temp
	Br	Hcb	Hcj	(BH)max	Tw
Grade	mT(KGs)	KA/m (KGs)	KA/m (KOe)	KJ/m 3 ( MGOe )	℃
N-35	1170-1220	≥ 868	≥ 955	263-287	≤ 80
N-35	(11.7-12.2)	( ≥ 10.9)	( ≥ 12)	(33-36)	≤ 80
N-38	1220-1250	≥ 899	≥ 955	287-310	≤ 80
N-38	(12.2-12.5)	( ≥ 11.3)	( ≥ 12)	(36-39)	≤ 80
N-40	1250-1280	≥ 923	≥ 955	302-326	≤ 80
N-40	(12.5-12.8)	( ≥ 11.6)	( ≥ 12)	(38-41)	≤ 80
N-42	1280-1320	≥ 923	≥ 955	318-342	≤ 80
N-42	(12.8-13.2)	( ≥ 11.6)	( ≥ 12)	(40-43)	≤ 80
N-45	1320-1380	≥ 876	≥ 955	342-366	≤ 80
N-45	(13.2-13.8)	( ≥ 11.0)	( ≥ 12)	(43-46)	≤ 80
N-48	1380-1420	≥ 836	≥ 876	366-390	≤ 80
N-48	(13.8-14.2)	( ≥ 10.5)	( ≥ 11)	(46-49)	≤ 80
N-50	1400-1450	≥ 860	≥ 876	382-406	≤ 80
N-50	(14.0-14.5)	( ≥ 10.8)	( ≥ 11)	(48-51)	≤ 80
35M	1170-1220	≥ 868	≥ 1114	263-287	≤ 100
35M	(11.7-12.2)	( ≥ 10.9)	( ≥ 14)	(33-36)	≤ 100
38M	1220-1250	≥ 899	≥ 1114	287-310	≤ 100
38M	(12.2-12.5)	( ≥ 11.3)	( ≥ 14)	(36-39)	≤ 100
40M	1250-1280	≥ 923	≥ 1114	302-326	≤ 100
40M	(12.5-12.8)	( ≥ 11.6)	( ≥ 14)	(38-41)	≤ 100
42M	1280-1320	≥ 955	≥ 1114	318-342	≤ 100
42M	12.8-13.2	( ≥ 12.0)	( ≥ 14)	(40-43)	≤ 100
45M	1320-1380	≥ 995	≥ 1114	342-366	≤ 100
45M	(13.2-13.8)	( ≥ 12.5)	( ≥ 14)	(43-46)	≤ 100
48M	1360-1430	≥ 1027	≥ 1114	366-390	≤ 100
48M	(13.6-14.3)	( ≥ 12.9)	( ≥ 14)	(46-49)	≤ 100
50M	1400-1450	≥ 1033	≥ 1114	382-406	≤ 100
50M	(14.0-14.5)	( ≥ 13.0)	( ≥ 14)	(48-51)	≤ 100
33H	1130-1180	≥ 836	≥ 1353	247-271	≤ 120
33H	(11.3-11.8)	( ≥ 10.5)	( ≥ 17)	(31-34)	≤ 120
35H	1170-1220	≥ 868	≥ 1353	263-287	≤ 120
35H	(11.7-12.2)	( ≥ 10.9)	( ≥ 17)	(33-36)	≤ 120
38H	1220-1250	≥ 899	≥ 1353	287-310	≤ 120
38H	(12.2-12.5)	( ≥ 11.3)	( ≥ 17)	(36-39)	≤ 120
40H	1250-1280	≥ 923	≥ 1353	302-326	≤ 120
40H	(12.5-12.8)	( ≥ 11.6)	( ≥ 17)	(38-41)	≤ 120
42H	1280-1320	≥ 955	≥ 1353	318-342	≤ 120
42H	(12.8-13.2)	( ≥ 12.0)	( ≥ 17)	(40-43)	≤ 120
45H	1320-1380	≥ 963	≥ 1353	342-366	≤ 120
45H	(13.2-13.8)	( ≥ 12.1)	( ≥ 17)	(43-46)	≤ 120
48H	1370-1430	≥ 995	≥ 1274	366-390	≤ 120
48H	(13.7-14.3)	( ≥ 12.5)	( ≥ 16)	(46-49)	≤ 120
33SH	1130-1170	≥ 844	≥ 1592	247-271	≤ 150
33SH	(11.3-11.7)	≥ 10.6	( ≥ 20)	(31-34)	≤ 150
35SH	1170-1220	≥ 876	≥ 1592	263-287	≤ 150
35SH	(11.7-12.2)	( ≥ 11.0)	( ≥ 20)	(33-36)	≤ 150
38SH	1220-1250	≥ 907	≥ 1592	287-310	≤ 150
38SH	(12.2-12.5)	( ≥ 11.4)	( ≥ 20)	(36-39)	≤ 150
40SH	1250-1280	≥ 939	≥ 1592	302-326	≤ 150
40SH	(12.5-12.8)	( ≥ 11.8)	( ≥ 20)	(38-41)	≤ 150
42SH	1280-1320	≥ 995	≥ 1592	318-342	≤ 150
42SH	(12.8-13.2)	( ≥ 12.5)	( ≥ 20)	(40-43)	≤ 150
45SH	1320-1380	≥ 1003	≥ 1592	342-366	≤ 150
45SH	(13.2-13.8)	( ≥ 12.6)	( ≥ 20)	(43-46)	≤ 150
28UH	1020-1080	≥ 764	≥ 1990	207-231	≤ 180
28UH	(10.2-10.8)	( ≥ 9.6)	( ≥ 25)	(26-29)	≤ 180
30UH	1080-1130	≥ 812	≥ 1990	223-247	≤ 180
30UH	(10.8-11.3)	( ≥ 10.2)	( ≥ 25)	(28-31)	≤ 180
33UH	1130-1170	≥ 852	≥ 1990	247-271	≤ 180
33UH	(11.3-11.7)	( ≥ 10.7)	( ≥ 25)	(31-34)	≤ 180
35UH	1180-1220	≥ 860	≥ 1990	263-287	≤ 180
35UH	(11.8-12.2)	( ≥ 10.8)	( ≥ 25)	(33-36)	≤ 180
38UH	1220-1250	≥ 907	≥ 1990	287-310	≤ 180
38UH	(12.2-12.5)	( ≥ 11.4)	( ≥ 25)	(36-39)	≤ 180
30EH	1080-1130	≥ 812	≥ 2388	223-247	≤ 200
30EH	(10.8-11.3)	( ≥ 10.2)	( ≥ 30)	(28-31)	≤ 200
33EH	1130-1170	≥ 812	≥ 2388	247-271	≤ 200
33EH	(11.3-11.7)	( ≥ 10.2)	( ≥ 30)	(31-34)	≤ 200
35EH	1170-1220	≥ 876	≥ 2388	263-287	≤ 200
35EH	(11.7-12.2)	( ≥ 11.0)	( ≥ 30)	(33-36)	≤ 200
30AH	1080-1130	≥ 812	≥ 2785	223-247	≤ 240
30AH	(10.8-11.3)	( ≥ 10.2)	( ≥ 35)	(28-31)	≤ 240
33AH	1130-1170	≥ 812	≥ 2785	247-271	≤ 240
33AH	(11.3-11.7)	( ≥ 10.2)	( ≥ 35)	31-34	≤ 240
