Disc NdFeB magnets with gold plating from China manufacturer

Price:	0.1~20.0 USD
Payment Terms:	T/T,L/C;Gold Plated
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land;Gold Plated

Packing: Neutral packing

Application: Industrial Magnet

Type: Permanent

Brand Name: Xionghai Magnets

Coating: Gold

Production Capacity: 100 tons per month

Delivery Date: 15days

Shape: Disc, Ring, Cylinder, Bloc...

Composite: Rare Earth Magnet

Grade: N33 N35 N38 N40 N42 N45 N48...

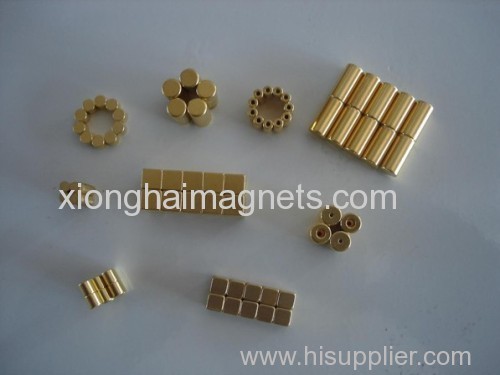

Gold Plated Rare Earth Neodymium Magnets and NdFeB Magnet Balls
1) Material:Rare earth NdFeB Magnets.
2) Size:according to your require.

XiongHai Magnets can supply NdFeB permanent magnets in various sizes, shapes and dimensions at the requests of customers and will deliver them in the shortest possible time. With its expertise management, products of Universal Magnetech have been well received in many European and Asian countries.

The Physical Properties of Neodymium Permanent Magnete Super Strong Magneti Neodimio Rare Earth Aimant Neodyme:

Parameters	Units	Indicators
Density	g/cm³	≥7.3
Home temperature	℃	310-340
BrReversible temperature coefficient	℃/%	-0.100~-0.130
HcjReversible temperature coefficient	℃/%	0.40~0.70
Compressive strength	N/mm2	1050
Bending strength	N/mm2	250
Tensile strength	N/mm2	80
Webster Hardness		600
Coefficient of thermal expansion(20 to 200℃)	10-6/k	∥5⊥-1.5
Specific heat	J/(Kg.K)	460
Thermal conductivity	W/(m.K)	9
Resistivity	μΩ.cm	150

The Surface Coatings of Neodymium Permanent Magnete Super Strong Magneti Neodimio Rare Earth Aimant Neodyme:

Surface	Coating	thickness(um)	Coating Color	SST (hours)	PCT (hours)
Nickel	Ni+Ni Ni+Cu+Ni	10~20	Bright Silvery	24~72	24~72
Black Nickel	Ni+Cu+Ni	10~20	Bright Black	48~96	48
Cr3+Zinc	Zn Cr-Zn	5~8	Bright Blue Shining Color	16~48 36~72	\
Sn	Ni+Cu+Ni+Sn	10~25	Silver	36~72	48
Au	Ni+Cu+Ni+Au	10~25	Gold	12	48
Ag	Ni+Cu+Ni+Ag	10~25	Silver	12	48
Epoxy	Epoxy Ni+Cu+Epoxy Zn+Epoxy	10-20 15-30 15-25	Black / Grey	48 72~108 72~108
Passivation	\	1-3	Dark Grey	Temporary Protection	\
Phosphated	\	1-3	Dark Grey	Temporary Protection
